Transport of Compressed Air

Installation of a Pexgol Line 200 Meters Deep at an Underground Mine

Estudo de Caso Nº

66

Cliente

Meridian Mine – Faena El Peñón
Chile

|

2018

Condições de Trabalho

Pressure: 10 bar

Solução Pexgol

Pexgol 160 mm (6”), Class 15

Aplicação

Transport of compressed air

Comprimento

1800 m

Categorias

Installation of a Pexgol Line 200 Meters Deep at an Underground Mine

The Challenge

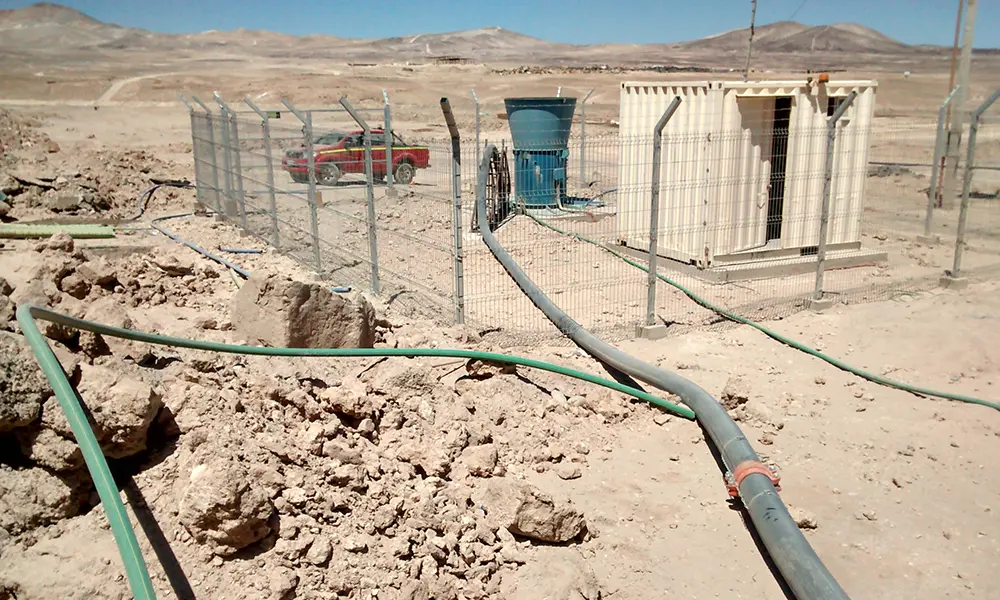

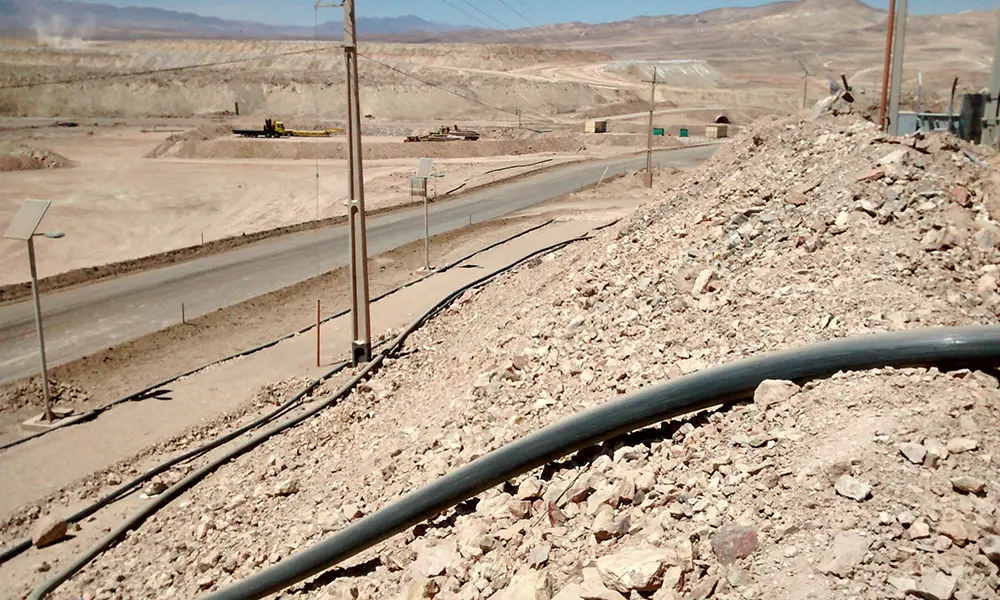

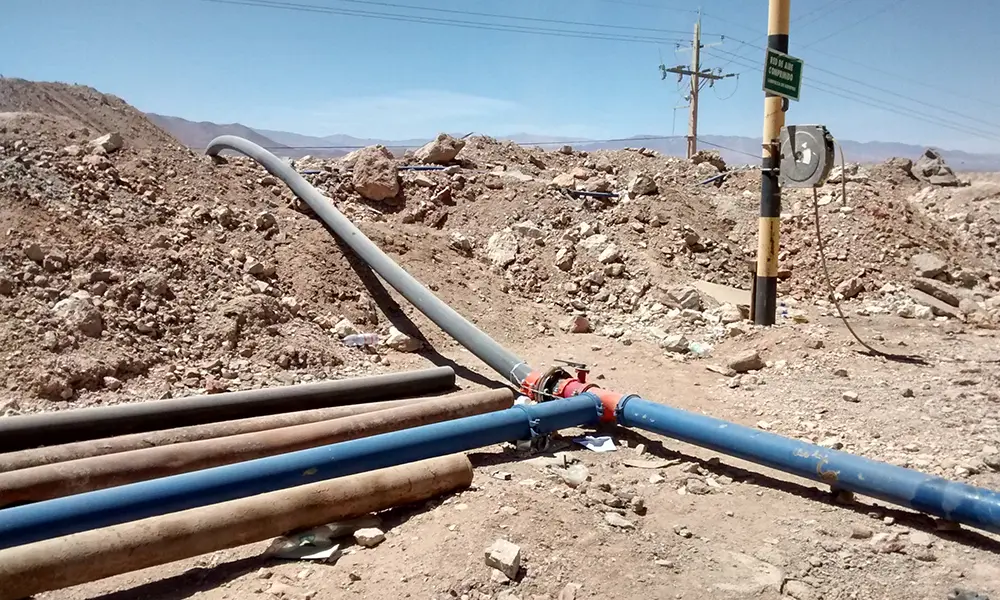

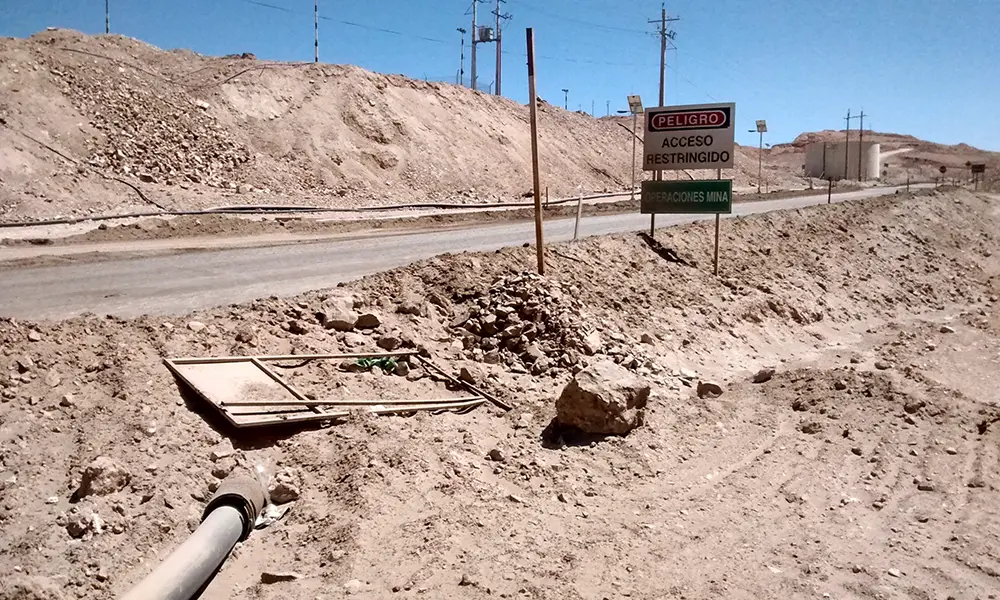

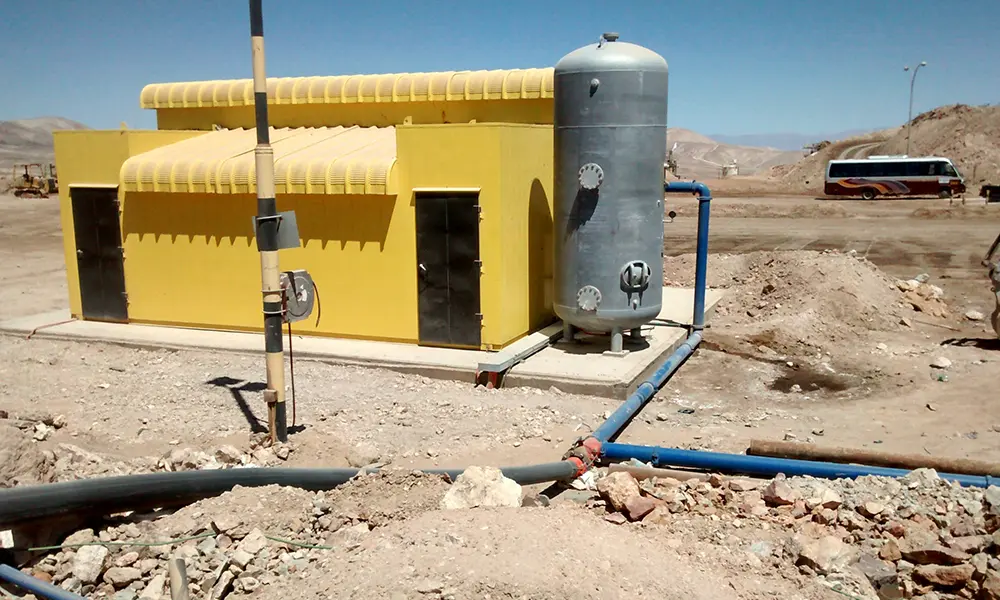

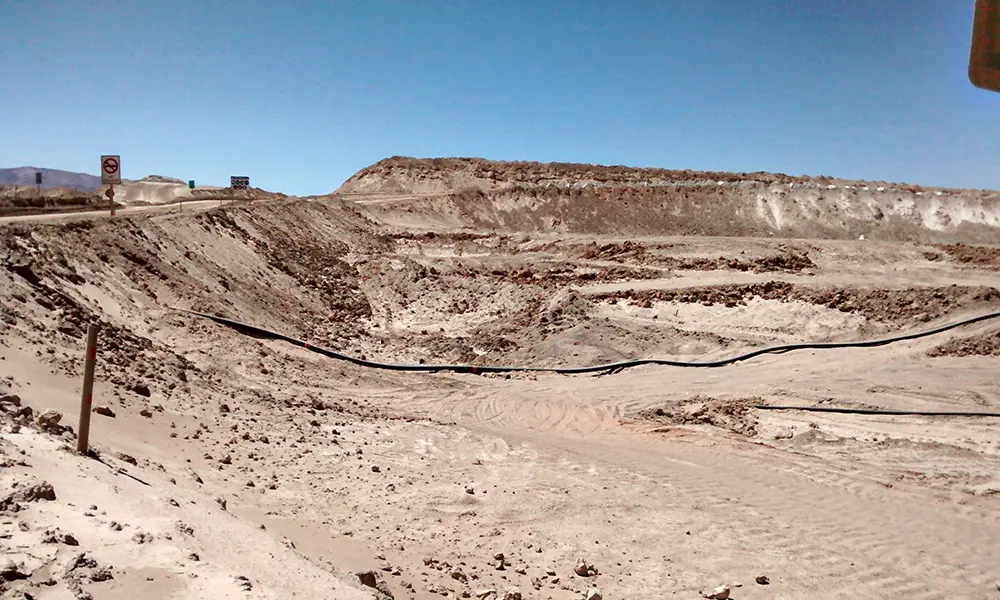

The Meridian Mine (Faena El Peñón) required the installation of a line for the transport of compressed air from the surface (horizontal), crossing roads of mining vehicles, ending 200 meters deep inside an underground mine through a vertical chimney.
The line had to withstand 10 bar of pressure.

Pexgol Solution

The client decided to install a 160 mm (6”) Pexgol pipe class 15 SDR 11 of 1800 meters in coils of 600 meters each.
Pexgol pipe was selected due to it advantages:

  • Less joints were needed, contributing to saving costs and giving more reliability to the line.

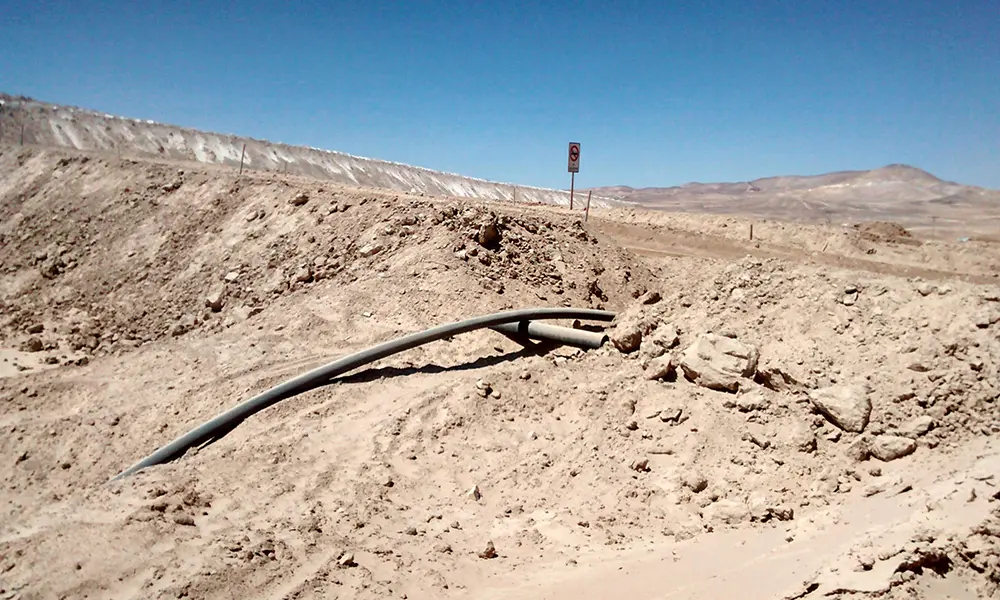

  • Resistance to mechanical stresses involved in installing at mining crossroads, using a 1.5 meter ditch and filling with material from the same ditch, without using a steel jacket.
  • Resistance to changes in ambient temperature (5°C to 30°C).
  • Creep resistance.

The installation was simple: only 4 mechanical connections were used, selected by the mining company without using special tools. If HDPE pipes were used, about 150 mechanical connections would have been required.

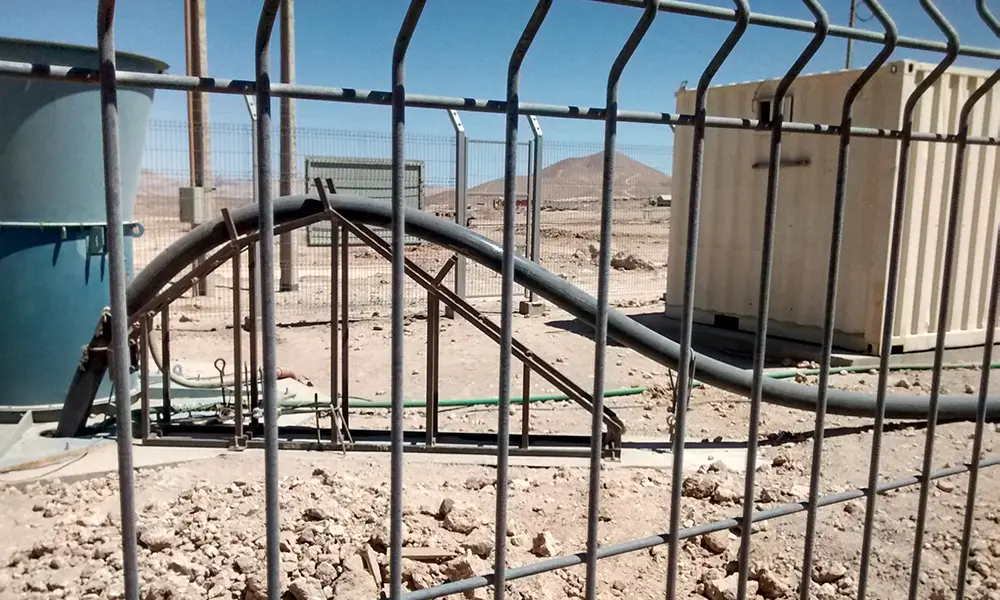

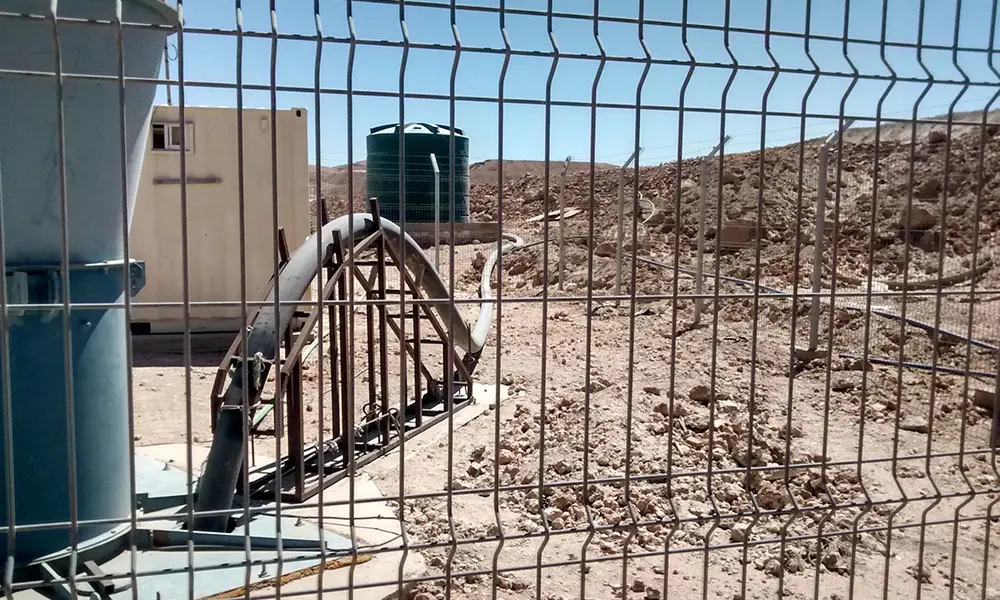

Also, to support the Pexgol pipes in the upper zone, before entering the underground mine by the chimney, a mechanical system designed by the mining company was incorporated.
